SCALE LOUPE WITH LED LIGHT

Equipped with LED light, suitable for observation in dark places

Point

Effective Dia  1.4x  times larger

Its effective diameter is 28mm, 1.4x larger than the previous model (LSL-35). A larger lens for easier visibility.



Point

4 times※ brighter

In addition to the brightness, attenuation over time has been improved, making it brighter and easier to see.









Point

Reticle included

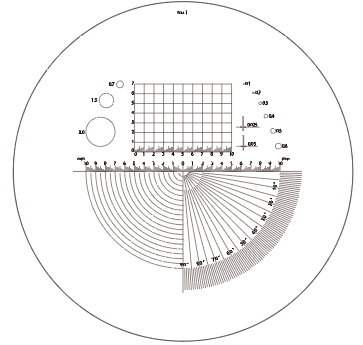

Graduation scale with 0.1mm intervalsReticle for NLSL-10-1/ NLSL-15-1 (mutual)

Accessories:

● Reticle (pre-attached) x1　● Eyepiece cap x1
● USB charging cable (cord length: approx. 50cm) x1
● Storage case x1　● Cleaning cloth x1



Point

Two types available, selectable by magnification









SPECIFICATIONS

 Order No.  Model No.  Magnification  Field of View Effective Diameter  Reticle Body Size  Weight  Operating
 Temperature		  Continuous
 Lighting Time
 011296  NLSL-10-1  10x  26mm  28mm  φ35×D1.3mm φ47×H59mm  Approx. 110g  5℃～40℃  5℃～40℃
 011297 NLSL-15-1  15x  14mm Approx. 112g





LOUPE Variety of line-up to choose from according to purpose.

SCALE LOUPE NSL-10-S/NSL-10-1

10x magnification scale loupe with a wide field of view and easy to use

■Reticle

Accessories:

● Reticle (pre-attached) x1 ● Storage case x1 ● Eyepiece cap x1 ● Cleaning cloth x1
 SCALE LOUPE NSL-15-1/NSL-20-S/NSL-30-S

Scale loupe with higher magnifications of 15x, 20x, and 30x for detailed observation

 ■ Reticle


Accessories:

● Reticle (pre-attached) x1　 ● Storage pouch x1 ● Cleaning cloth x1

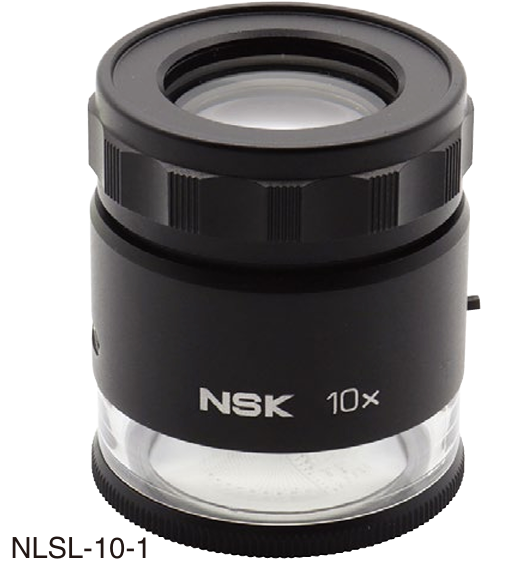

 SCALE LOUPE WITH LED LIGHT NLSL-10-1/NLSL-15-1

Equipped with a rechargeable lithium-ion battery and LED light, suitable for observation in dark places

■Reticle for NLSL-10-1/ NLSL-15-1 (mutual)

Accessories:

● Reticle (pre-attached) x1　● Eyepiece cap x1
● USB charging cable (cord length: approx. 50cm) x1
● Storage case x1　● Cleaning cloth x1

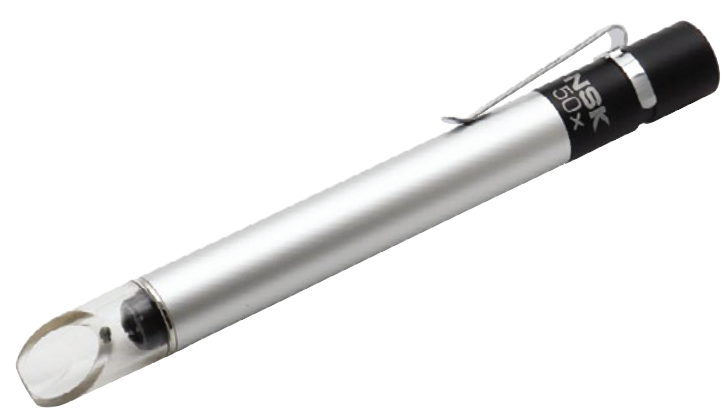

CLIP LOUPE NPL-50/NPL-25

High-magnification loupe with a clip,  convenient to carry around

■How to use

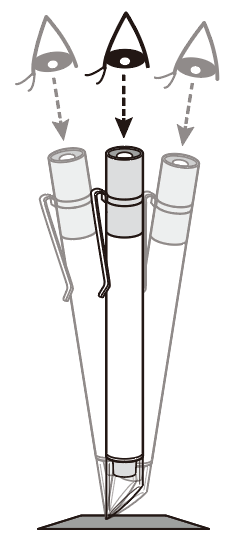

 While looking through the eyepiece, adjust the focus by tilting the acrylic part forward and backward, using the tip as a pivot point.

Note

Due to the design, the image seen through the loupe will be upside down.
